ODM Split phase No Break UPS with isolation transformer output 6~10KVA Manufacturer, Manufacturers

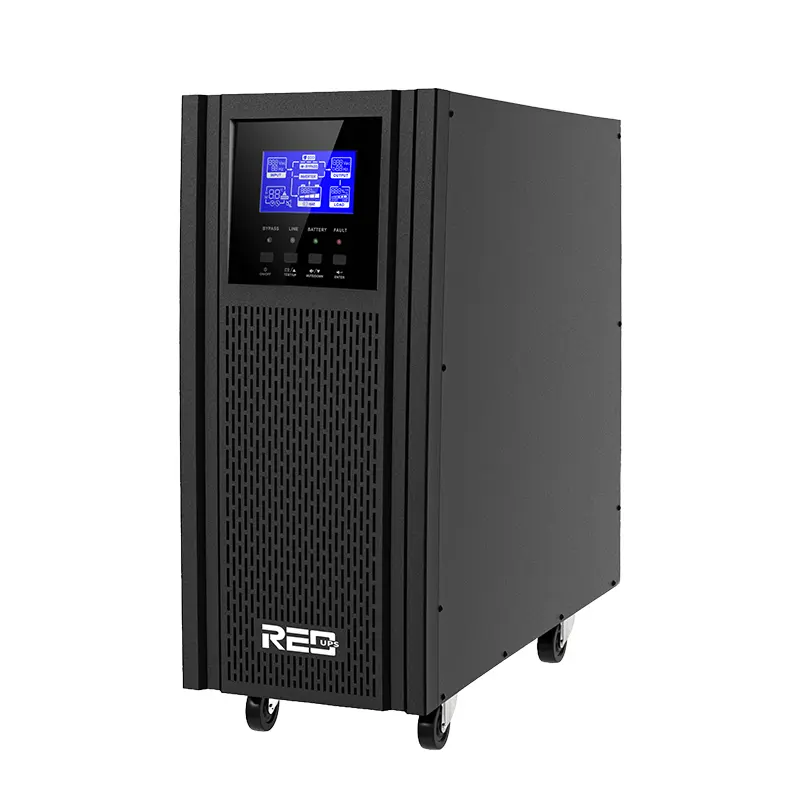

Model: Warrior series 6-10KVA (1phase 220V input and two phase output : 110V and 110V)

REO power split phase Warrior series 6-10KVA online UPS with single phase input and two phase output 110V and 110V and also built-in isolation transformer output, use three level inverter and DSP technology. It â€˜s the reliable power supply for the critical load such as data centers, IT networks, telecommunications systems, automation control systems.

Send Inquiry

Product Description

Key Features

◈

Output voltage configuration, single phase 220V/240V or dual phase 110V/115V/120V

◈

Galvanic isolation transformer between AC input and output in all operating mode

◈

DSP (Digital signal processors) control

◈

Active input power factor correction, input power factor > 0.99

◈

Three level inverter technology, lower harmonic, higher efficiency

◈

Wide input voltage range 90V~300V and frequency range 40~70Hz

◈

Generator compatible and Cold start function

◈

Economic operation mode (ECO) and 50Hz/60Hz Frequency auto sensing

◈

Frequency converter mode: 50Hz input / 60Hz output or 60Hz input / 50Hz output

◈

RS232, USB / MODBUS / RS485 / SNMP / AS400 card communications

◈

Reliable design with FR4 double side PCB and conformal coating

Specification

Accept Deeply Customized Products
Model	Warrior 10K	Warrior 10KL	Warrior 15K	Warrior 15KL	Warrior 20K	Warrior 20KL
Capacity	10KVA/10KW		15KVA/15KW		20KVA/20KW
Topology	Double conversion online UPS with two phase galvanic isolation output transformer
AC INPUT
Wiring	Biphase 3 wires (L1+L2+PE)-220V or 1phase 3 wires ( L+N+PE) -220V or 3phase 5 wires (L1, L2, L3, N+PE)-380V
Voltage Range	110~285VAC ±5VAC
Input Power Factor	>0.99
BATTERY & CHARGER
Rated Voltage	192VDC Internal	192/240VDC Ext.	192VDC Internal	192/240VDC Ext.	192VDC Internal	192/240VDC Ext.
Charging Current	Standard: 2A/4A (settable); Long backup model: 4A/8A (optional)
AC OUTPUT
Output Voltage	High voltage 208/220/230/240VAC ; Low voltage 110/120VAC
Waveform	Pure sine wave
Transfer Time	Line mode to Battery mode: 0ms
PHYSICAL
Dimension (WxDxH mm)	296x700x720	299x698x700	400x860x844	296x700x720	400x860x844	296x700x720

• Ambient temperature >30°C, output power factor is 0.9
• "L" suffix denotes long backup time model (external batteries).

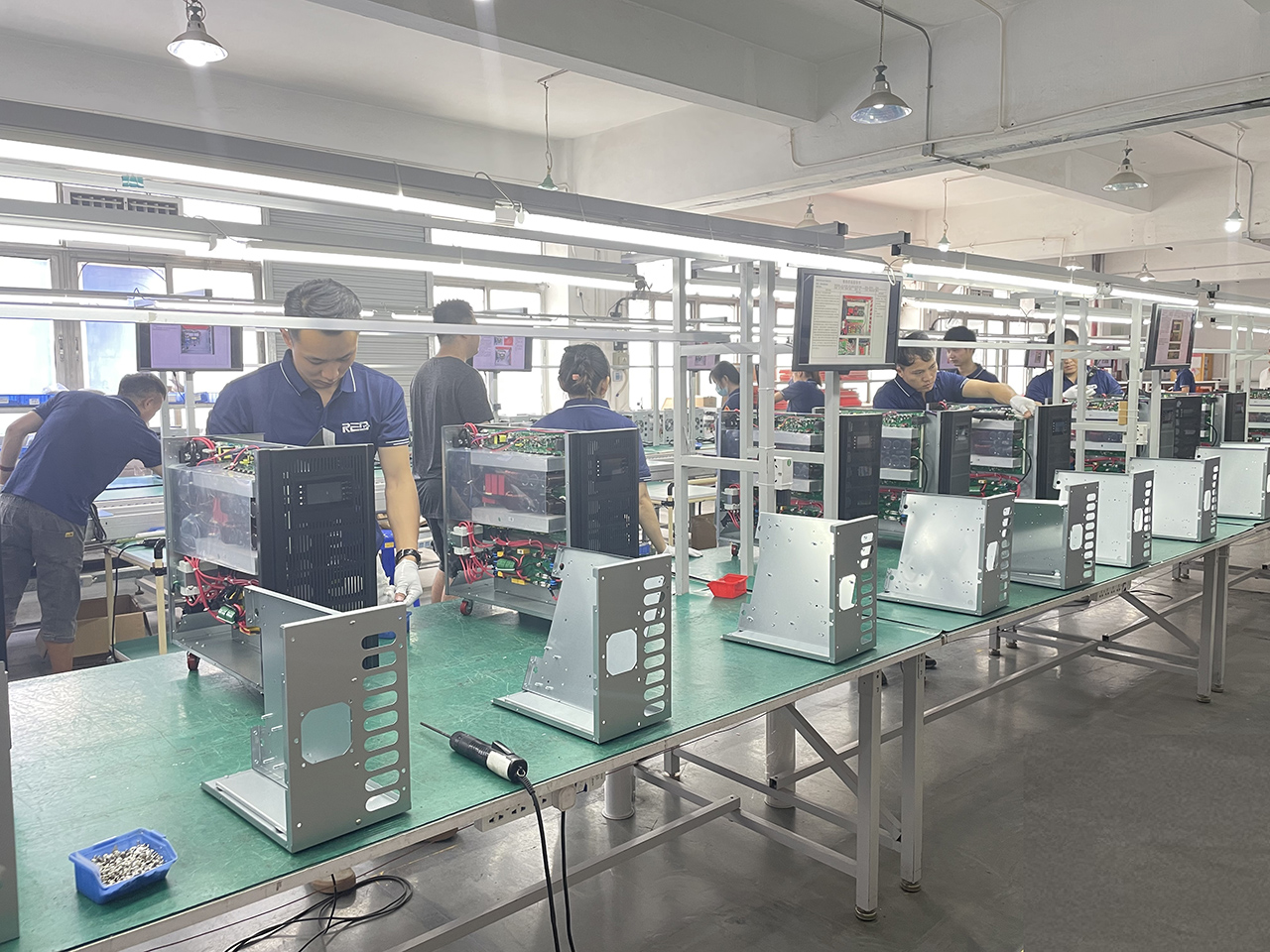

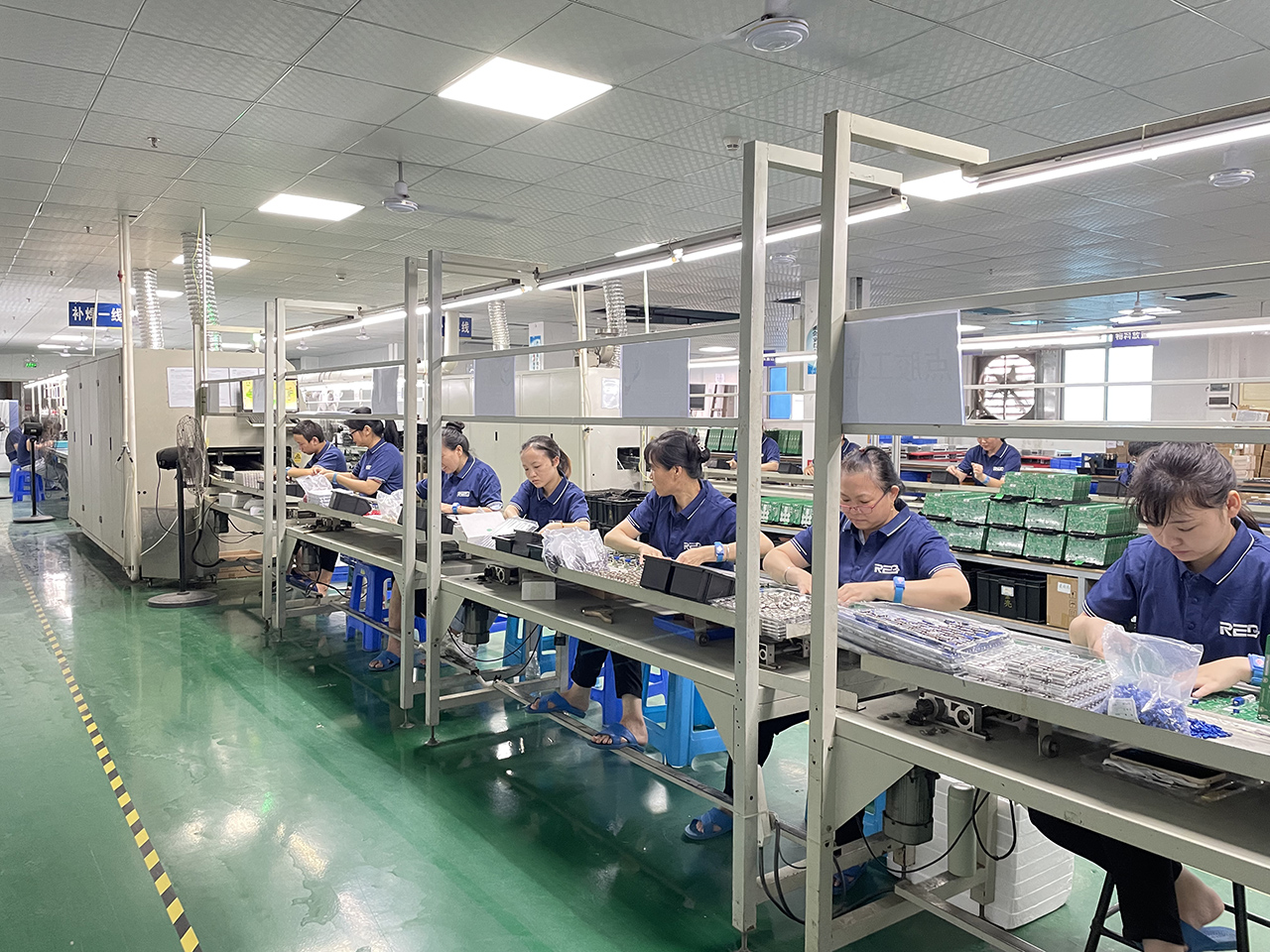

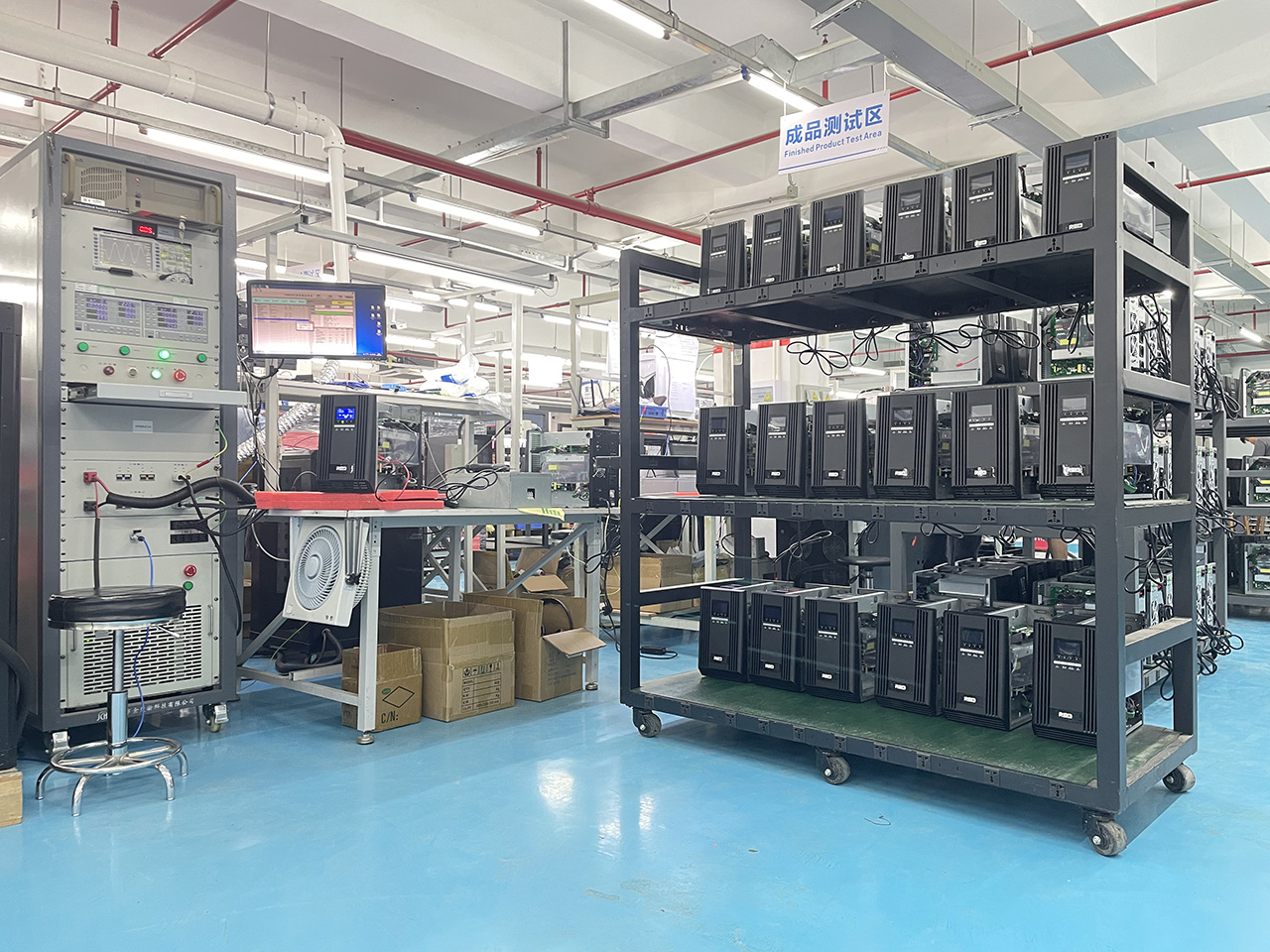

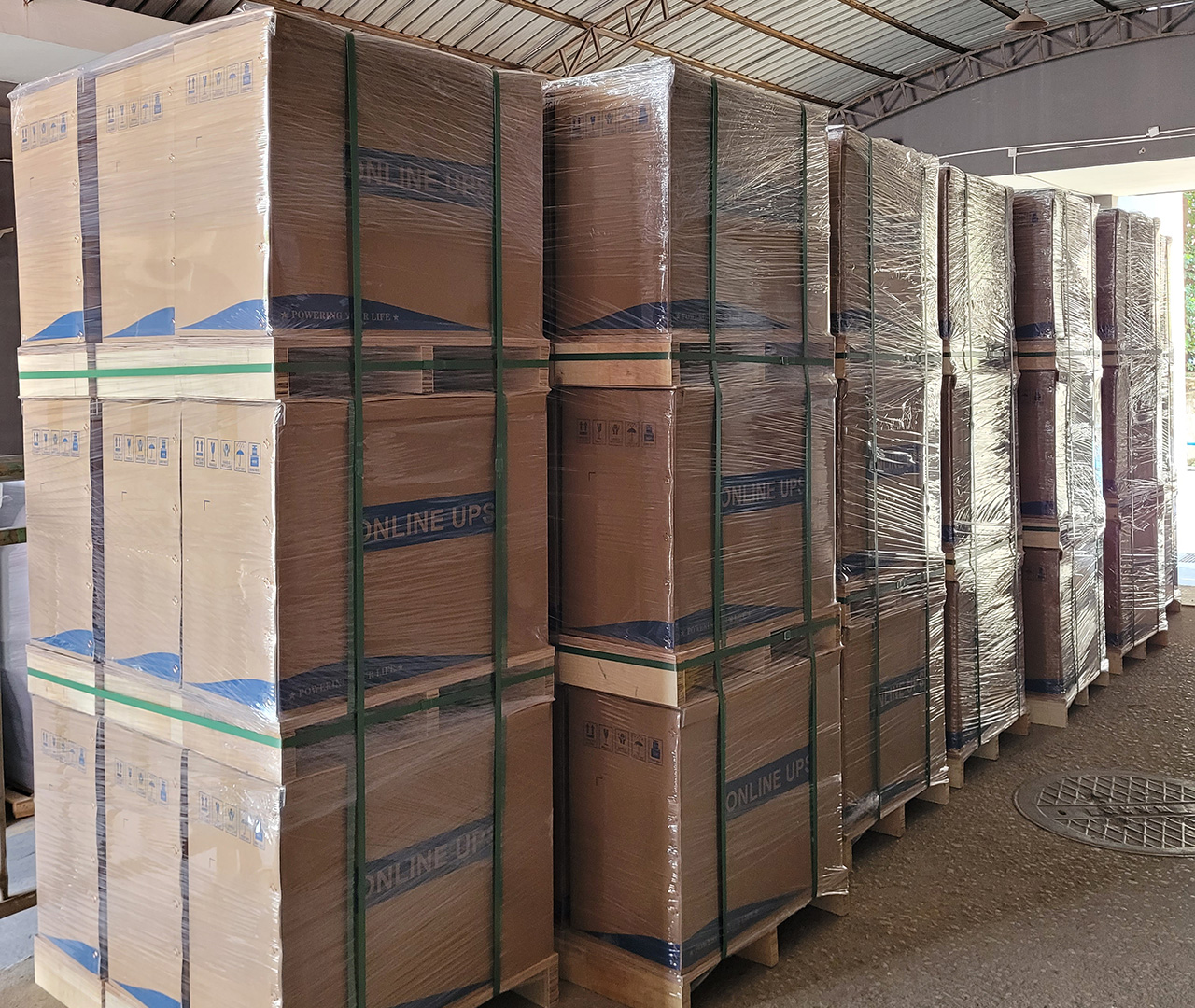

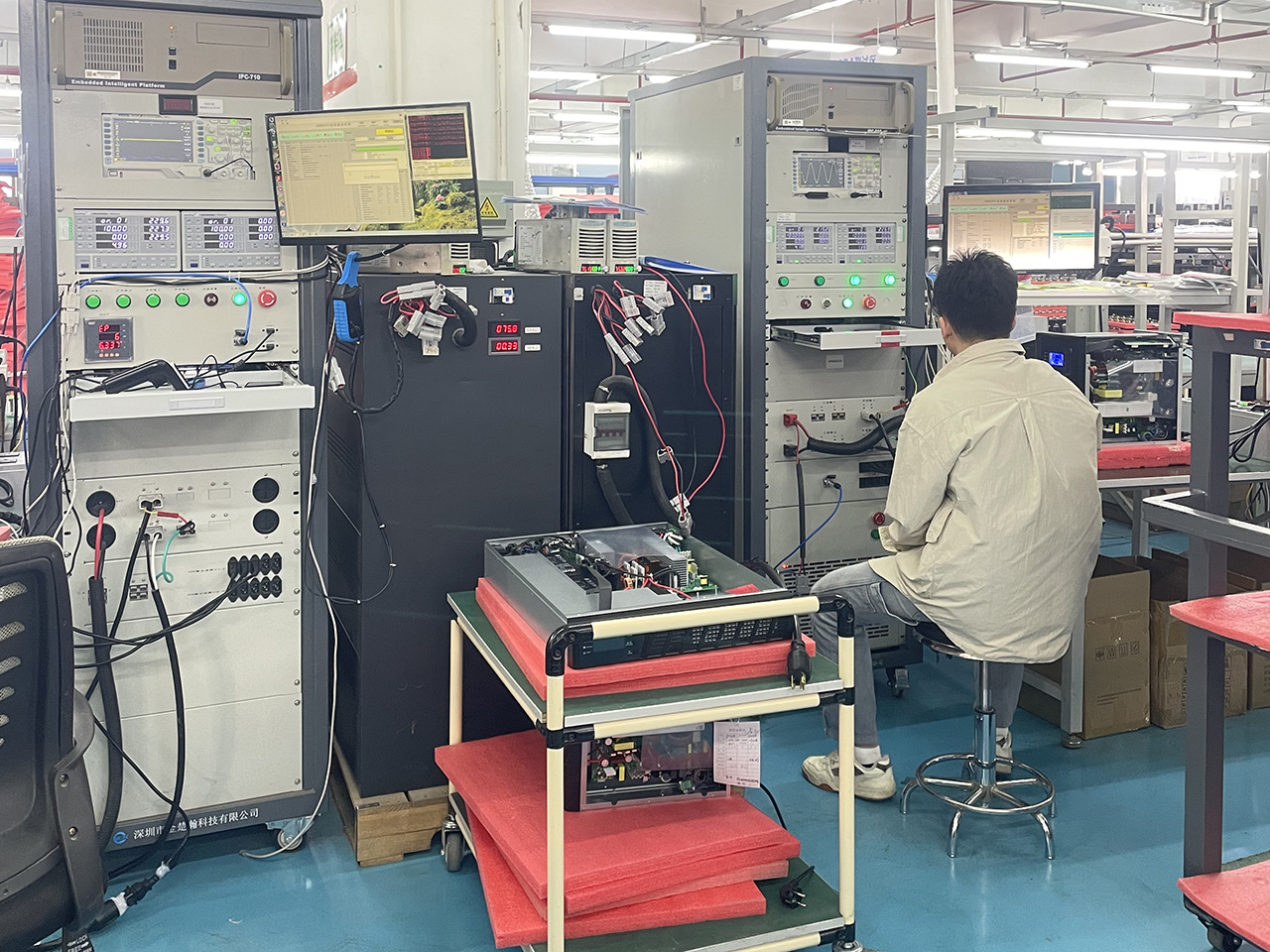

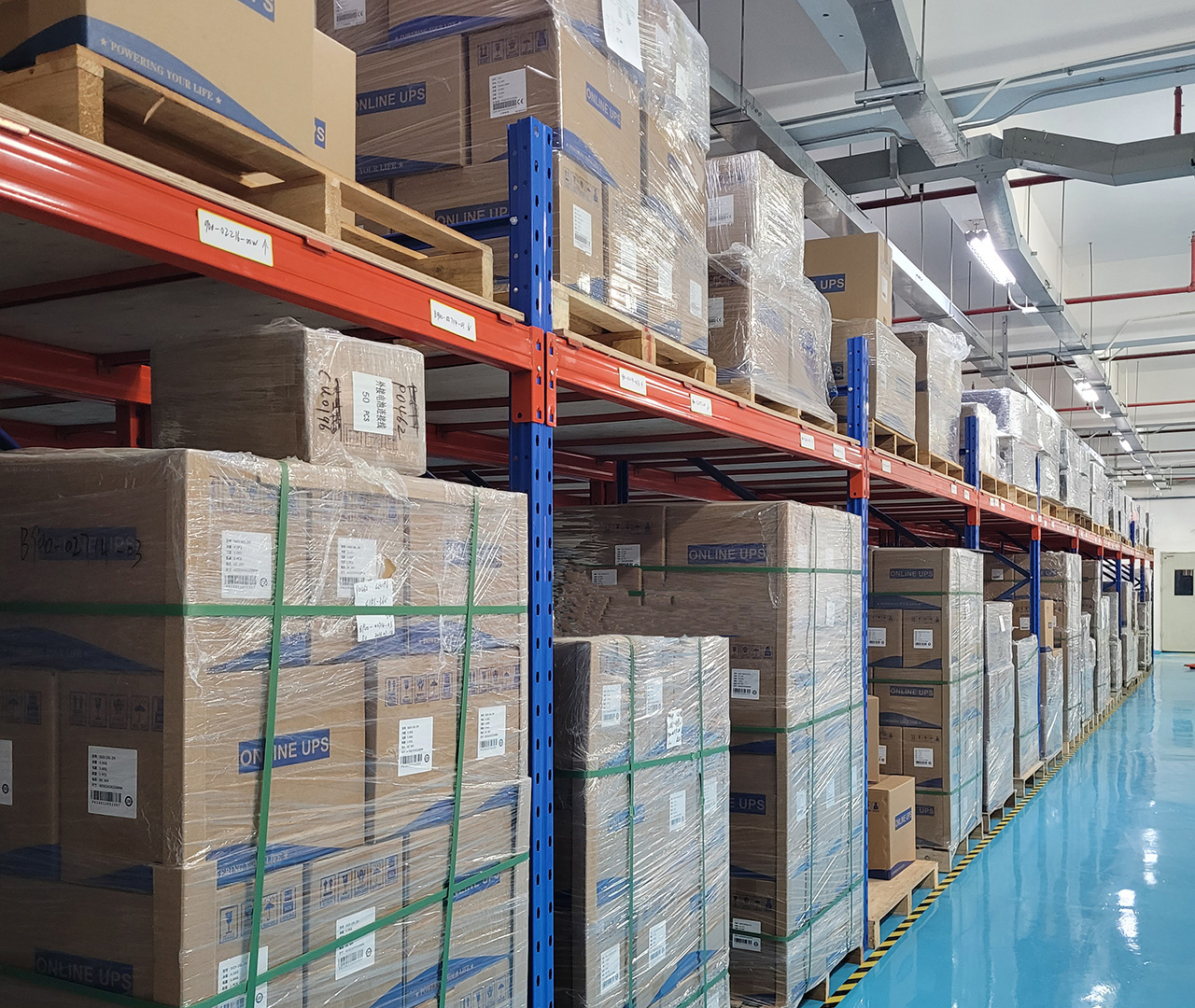

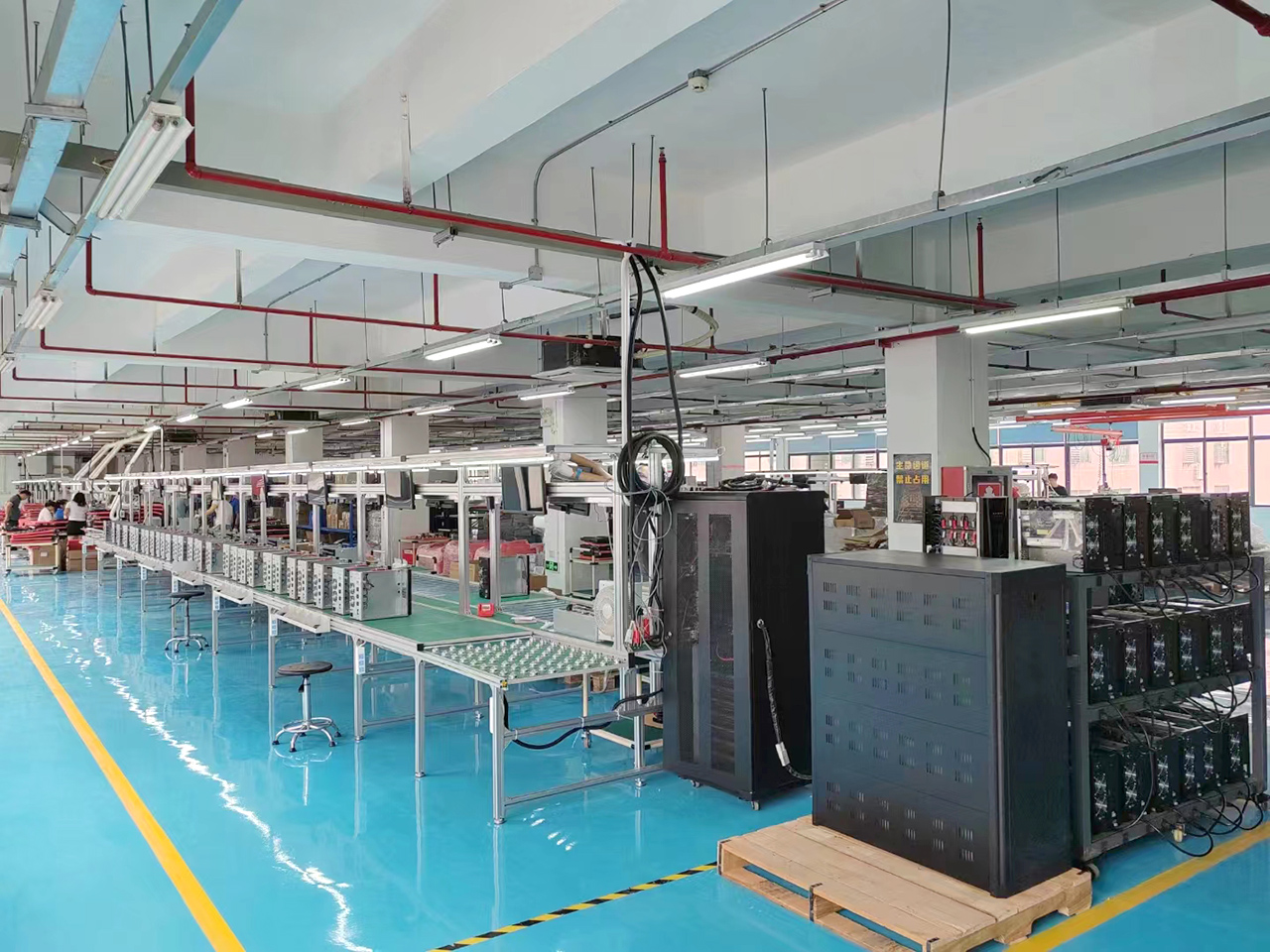

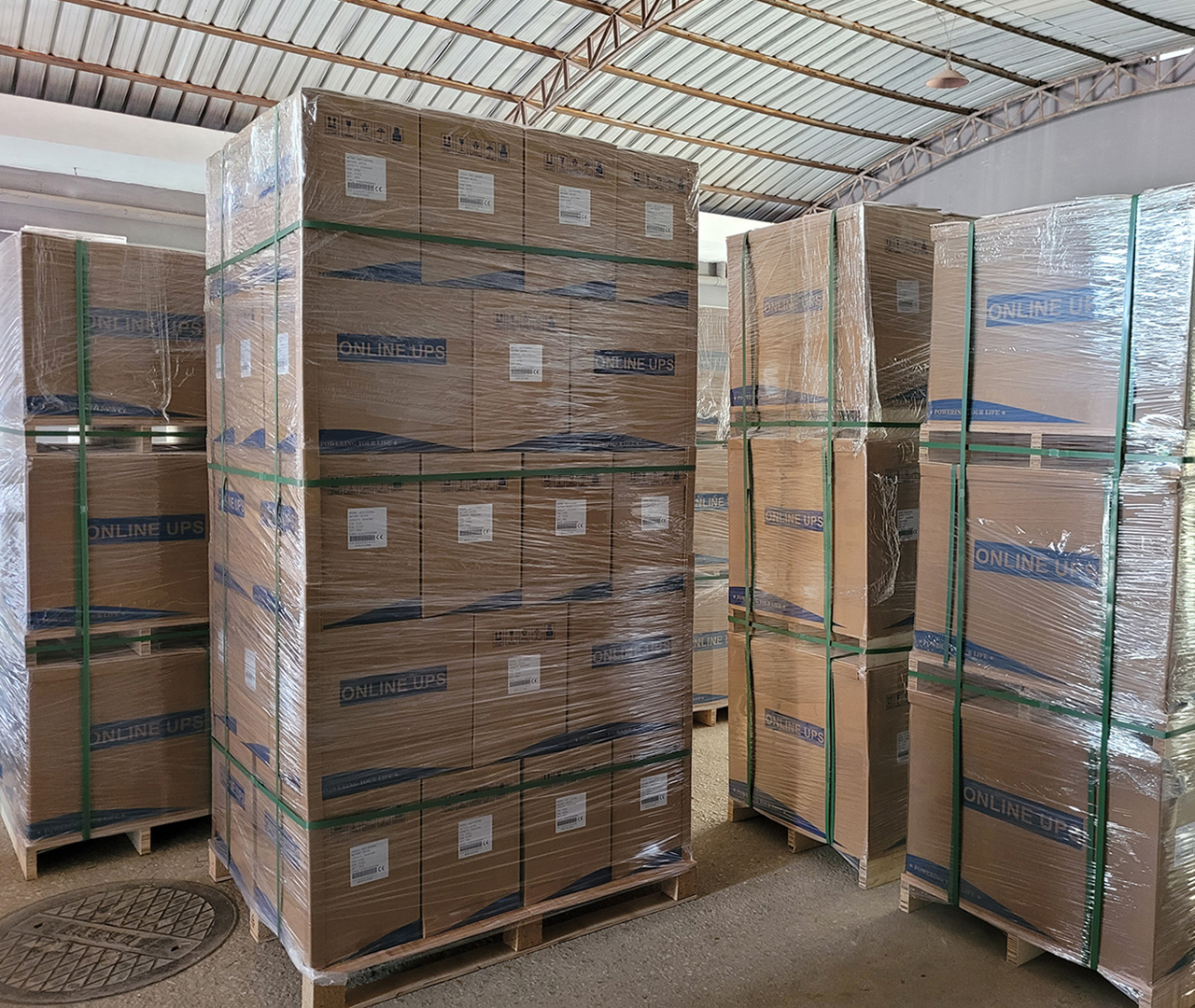

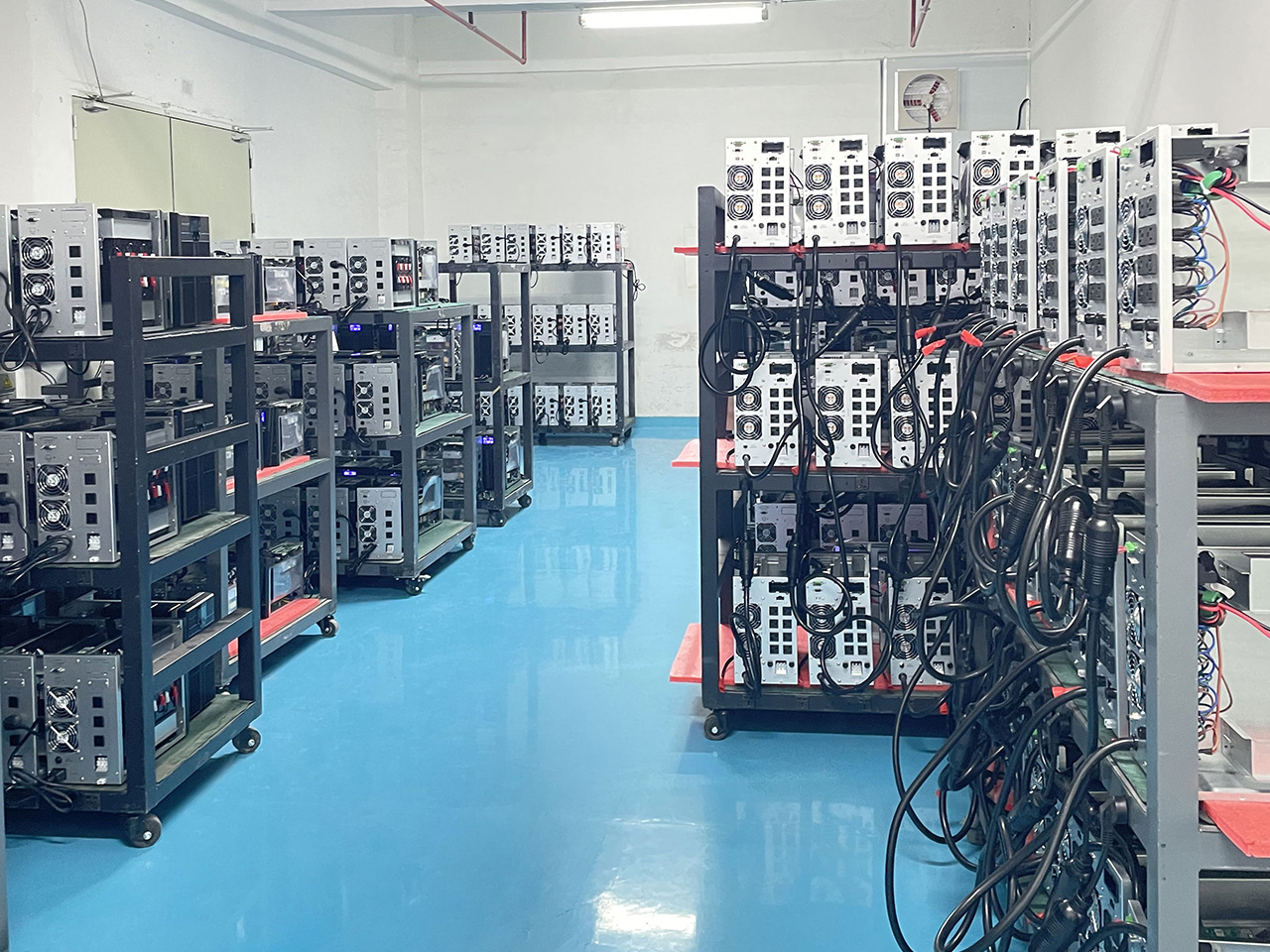

Production & Shipment

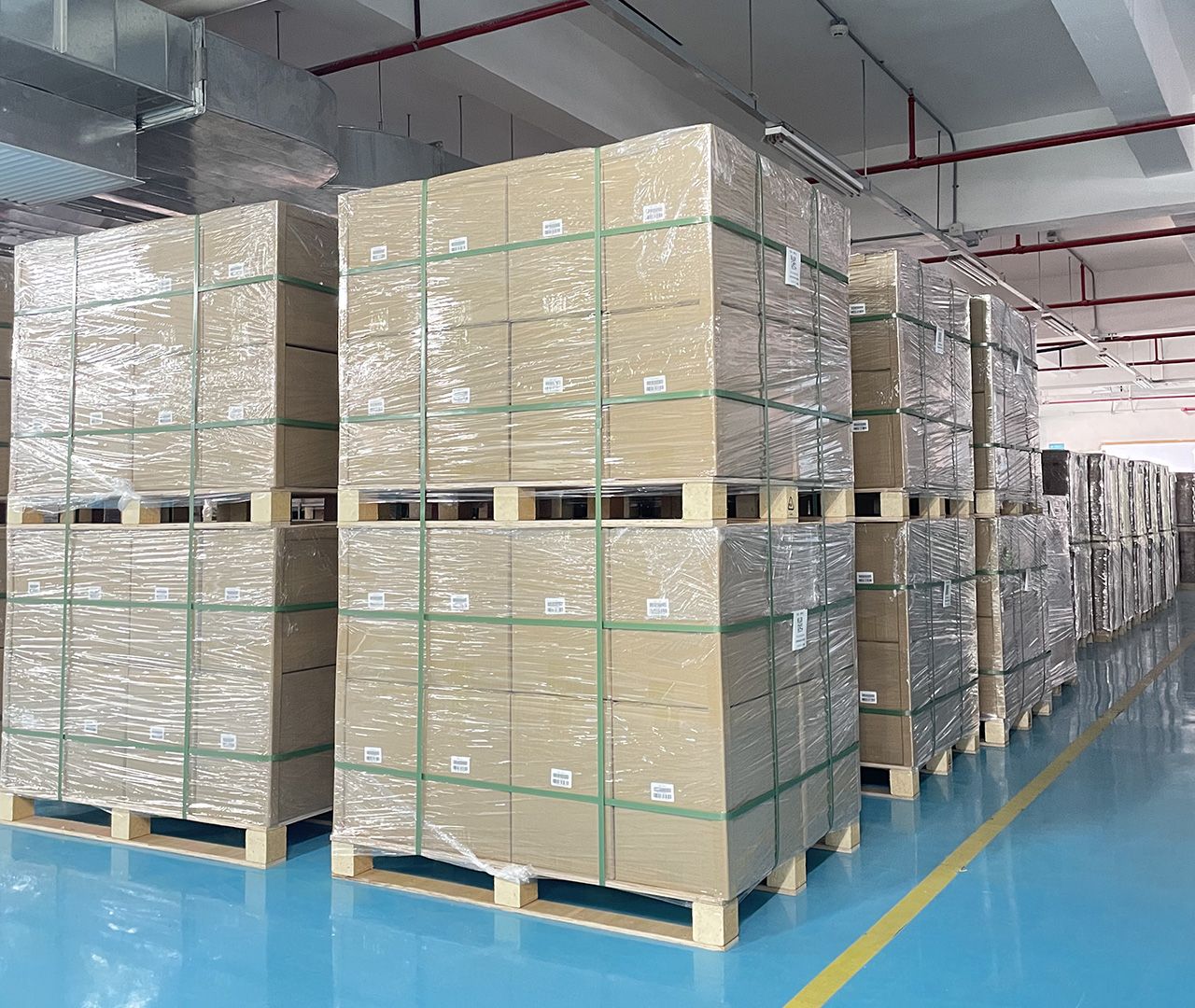

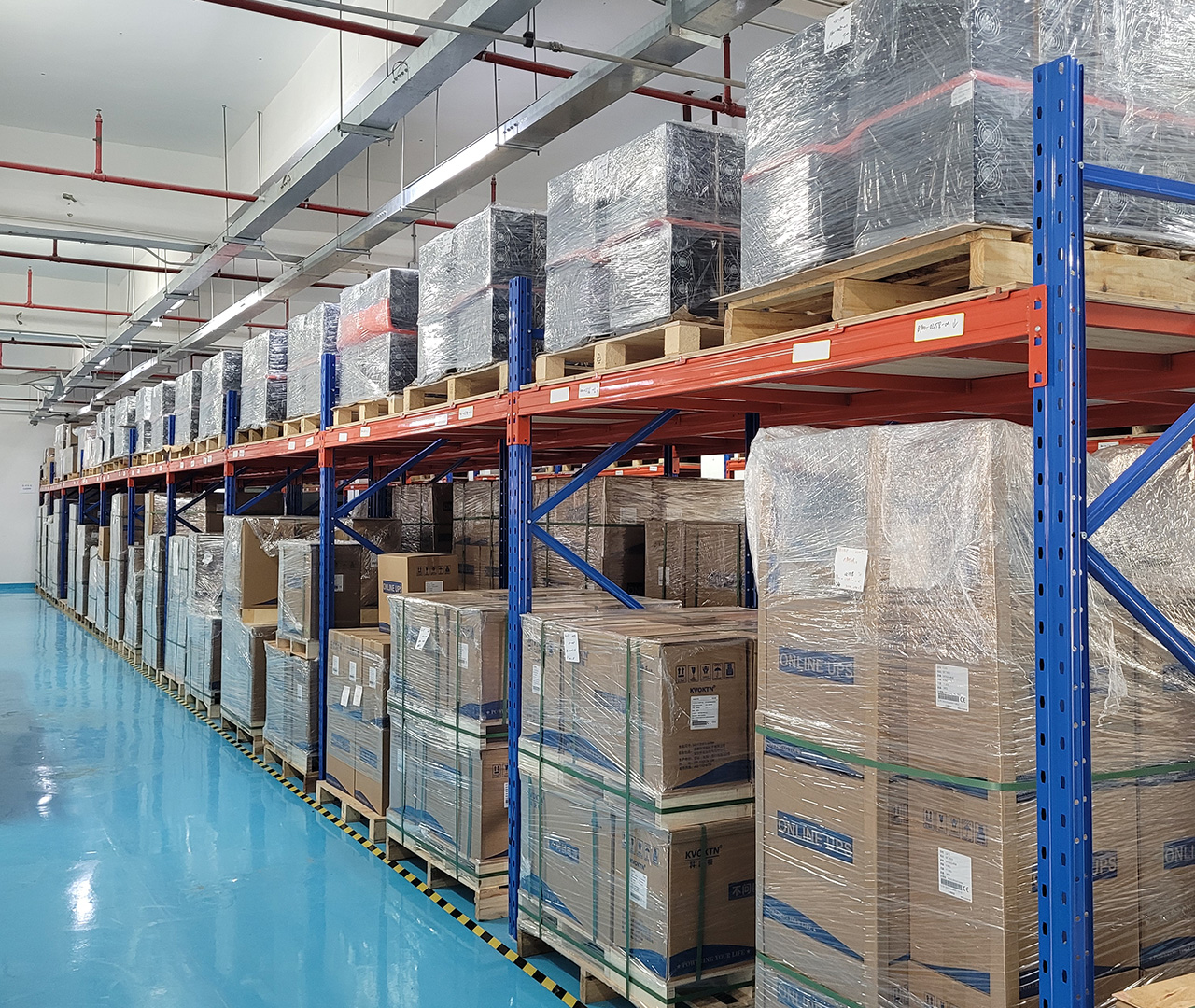

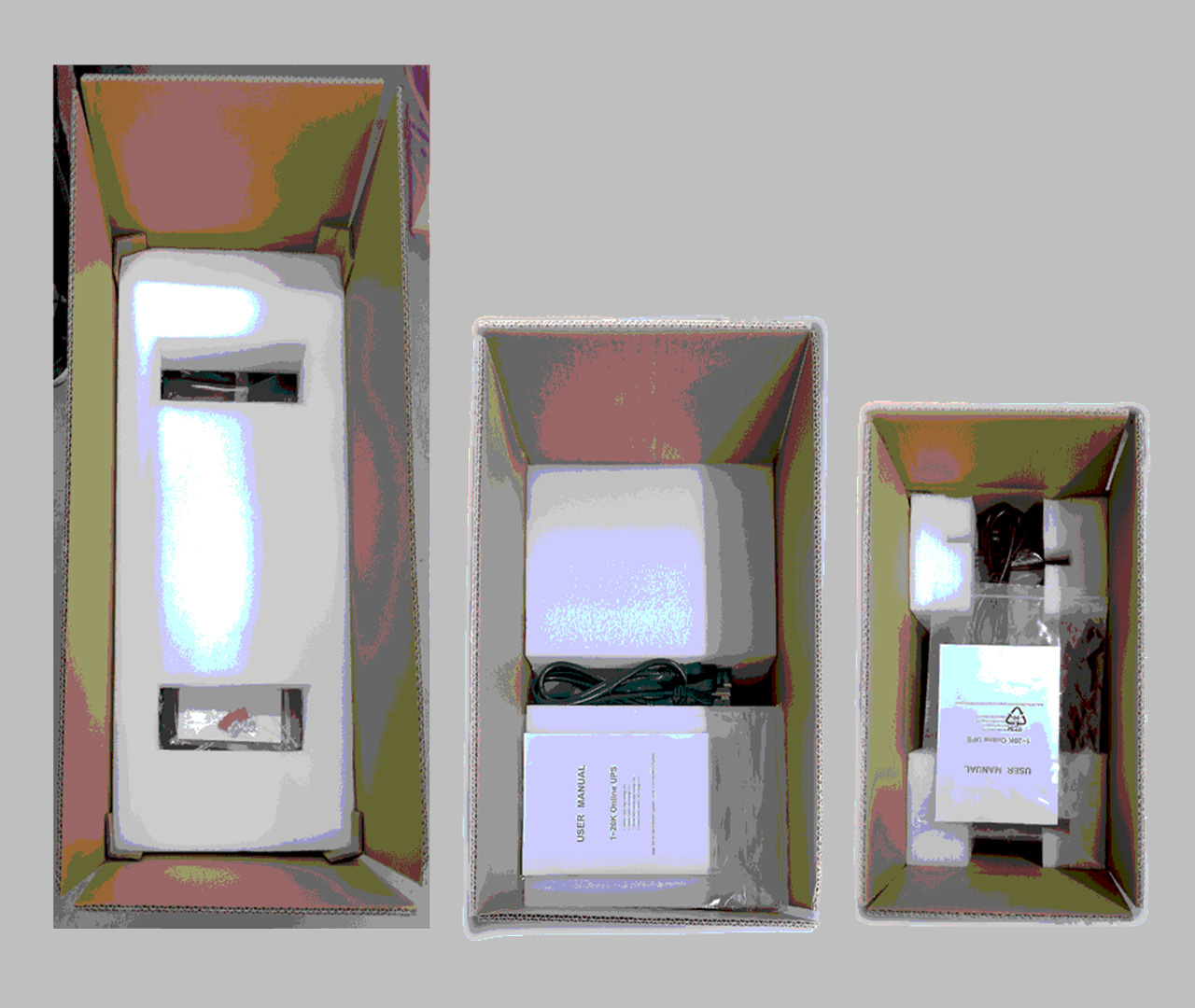

Product Packaging

Frequently Asked Questions

Q1. What kinds of payment methods do you accept?

Usually 30% deposit in advance, 70% balance before shipment. For other methods, please coordinate with our sales team.

Q2. What is the input voltage range for your UPS systems?

Our UPS systems support two types: 55~145V for 120V models and 90~300V for 220V models.

Q3. Can the UPS be used with a generator?

Yes, our systems are highly compatible with most generators. We recommend verifying the output stability of your specific generator model.

Q4. What is the typical battery life of your UPS units?

Typical life ranges from 3 to 5 years, depending on the frequency of discharge and environmental temperatures.

Q5. How long does the UPS provide backup power?

Backup time varies. Standard units with internal batteries provide a few minutes for safe shutdown, while long-backup models with external batteries can support several hours.

Q6. Is the UPS suitable for outdoor use?

These units are designed for indoor environments. For outdoor requirements, please inquire about our specialized outdoor series.
