ODM Hot-swappable Modular UPS Solutions 15-120KVA Manufacturer, Manufacturers

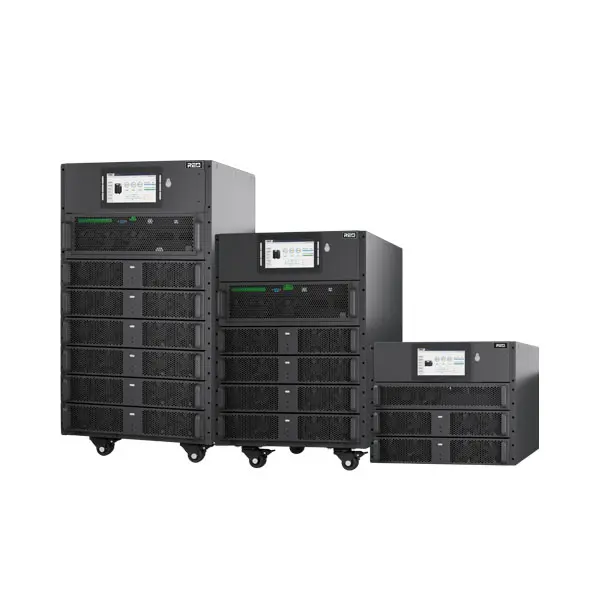

Model: Modular UPS series 15-120KVA (3-3Phase)

REO power modular UPS series 15-120KW (3ph in/3ph out) inbuilt 15KW~20KW power module and is scalable from 30KW to 120KW. Its normal mode and battery mode efficiency reach up to 96%. High power density is easy for power expansion, installation and maintenance. Hot swappable power module and bypass & monitoring module with self-aging, smart sleep function. Applications in Government, Finance, IT, Data Centers, IT server rooms, Â Manufacturing, Education, Transportation, Broadcasting, Medical, Energy, etc.

Send Inquiry

Product Description

Key Features

The rack modular, hot-swapping, online double conversion

High performance and efficiency, input PF>0.99, THDi<3%, normal model & battery model efficiency >96%.

Intelligent system self-diagnosis scheme, large capacity of history record storage space

Redundancy fan design in power module, increasing the system reliability and tolerance.

Top/bottom cable entry, flexible for different field installation.

Easy for power expansion, installation and maintenance.

Specification

Model	M030/15	M040/20	M060/15	M080/20	M090/15	M120/20
Capacity	30KVA/30KW	40KVA/40KW	60KVA/60KW	80KVA/80KW	90KVA/90KW	120KVA/120KW
Phase	Three phase input and Three phase output
Main Input
Input	3P5W (3P+N+PE)
Rate Voltage	380/400/415VAC(L-L) ; 220/230/240VAC(L-N)
Rate Freq.	50/60Hz
Input PF	>0.99
Current distortion	THDi<3%(100% Linear load)
Battery
Rate voltage	±240VDC
Inverter
Output PF	1
Voltage accuracy	±1.0%
System
Efficiency	Normal Mode ≥96% ; Battery Mode ≥96%
Display	LED + 7 inch touch LCD
Cabinet(WDH)mm	482700396 (9U)		482700662 (15U)		482700840 (19U)

Production Images

Product Packaging

Frequently Asked Questions

What kinds of payment methods do you accept?

Usually 30% deposit in advance, 70% balance before shipment. For other payment methods, please consult our sales team.

What is the input voltage range for your UPS systems?

Our UPS systems support two types of input voltage range: 55~145V for 120V models and 90~300V for 220V models.

Can the UPS be used with a generator?

Yes, our UPS systems are compatible with most generators, although it's recommended to verify the generator's output stability.

What is the typical battery life of your UPS units?

The battery life typically ranges from 3 to 5 years, depending on usage frequency and environmental conditions.

How long does the UPS provide backup power?

Backup time varies by model and load. Standard units with internal batteries support several minutes, while units with external batteries can provide hours of backup.

Is the UPS suitable for outdoor use?

Most of our high-frequency online UPS systems are designed for indoor use. For outdoor requirements, please refer to our specific outdoor models.
