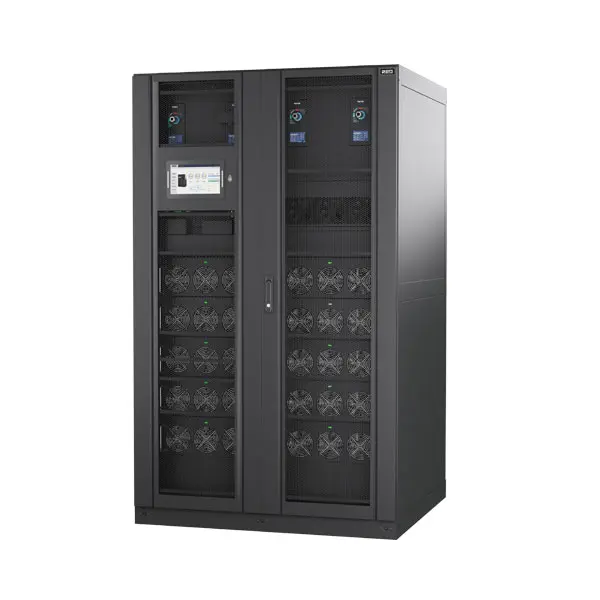

ODM Scalable Modular UPS for data centers 120-600KVA Manufacturer, Supplier

Model: Modular UPS series 120-600KVA (3-3Phase)

REO modular UPS series 120-600KW (3ph in/3ph out) built-in 50KW~60KW power module and is scalable from 120KW to 60KW with max up to 1800KW in parallel. Its normal mode and battery mode efficiency reach up to 96%. High power density is easy for power expansion, installation and maintenance. Hot swappable power module and bypass & monitoring module with self-aging, smart sleep function. Applications in Government, Finance, IT, Data Centers, IT server rooms, Â Manufacturing, Education, Transportation, Broadcasting, Medical, Energy, etc.

Send Inquiry

Product Description

Key Features

The rack modular, hot-swapping, N+X redundant, online double conversion

High performance and efficiency, input PF>0.99, THDi<3%, normal model & battery model efficiency >96%.

Intelligent system self-diagnosis scheme, large capacity of history record storage space

Redundancy fan design in power module, increasing the system reliability and tolerance.

Top/bottom cable entry, flexible for different field installation.

Easy for power expansion, installation and maintenance.

Applications: Government, Finance, IT, Education, Transportation, Broadcasting, Medical, Energy, etc

Specification

Model	M120/60	M180/60	M200/50	M240/60	M300/60	M480/60	M500/50	M600/60
Capacity	120KVA/120KW	180KVA/180KW	200KVA/200KW	240KVA/240KW	300KVA/300KW	480KVA/480KW	500KVA/500KW	600KVA/600KW
Phase	Three phase input and Three phase output
Main input
Input	3P5W (3P+N+PE)
Rate Voltage	380/400/415VAC(L-L); 220/230/240VAC(L-N)
Rate Freq.	50/60Hz
Input PF	>0.99
Current distortion	THDi<3%（100% Linear load）
Voltage range	304~478VAC(L-L)full load；304~228VAC (L-L) power derate from 100% to 75%
Battery
Rate voltage	±240VDC
Charging capacity	20%*Output Capacity
Inverter
Output PF	1
Efficiency	Normal Mode≥96%；Battery Mode≥96%
System
Display	LED + 7 inch touch LCD				LED + 10 inch touch LCD
Cabinet(WDH)mm	60010001600				60010002000	120011002000
