OEM Biphase two phase UPS 10-20KVA with ISO output Manufacturers, Suppliers

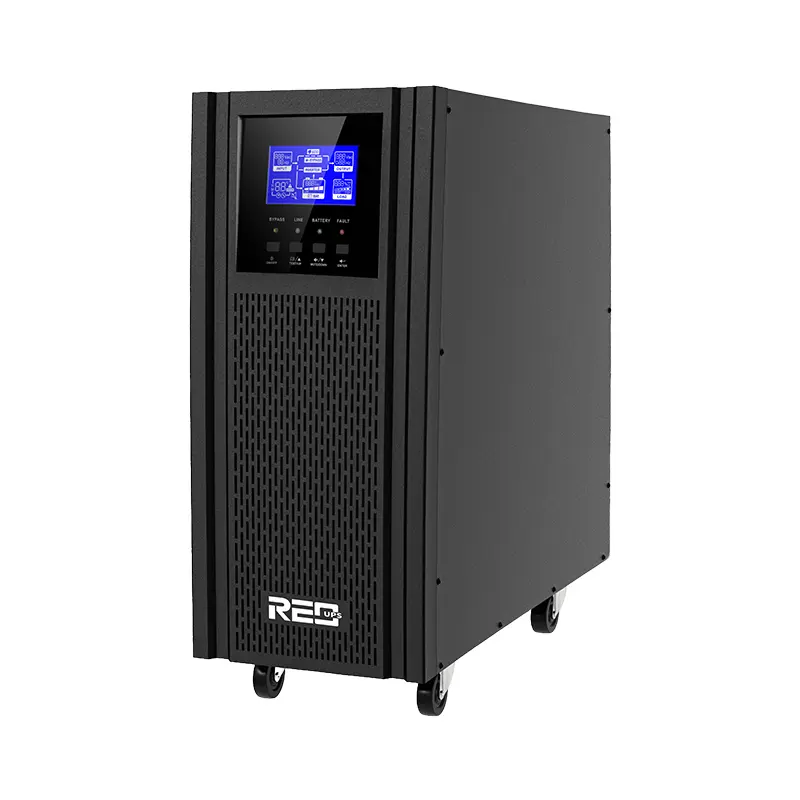

Model: Warrior series 10-20KVA (1phase 220V input and dual phase output : 110V and 110V)

REO power biphase, split phase Warrior series 6-20KVA online UPS with single phase input and two phase output 110V and 110V and also built-in isolation transformer output, use three level inverter and DSP technology. It â€˜s the reliable power supply for the critical load such as data centers, IT networks, telecommunications systems, automation control systems.

Send Inquiry

Product Description

Key Features

Output voltage configuration,single phase 220V/240V or dual phase 110V/115V/120V
Galvanic isolation transformer between AC input and output in all operating mode
DSP (Digital signal processors) control
Active input power factor correction, input power factor > 0.99
Three level inverter technology, lower harmonic, higher efficiency
Wide input voltage range 90V~300V and frequency range 40~70Hz
Generator compatible
Cold start function
Remote on off (ROO) function (optional)
Economic operation mode (ECO)
50Hz/60Hz Frequency auto sensing
Frequency converter mode: 50Hz input / 60Hz output or 60Hz input / 50Hz output
Laser printer and ultrasound system load acceptable (customized)
Communications: RS232(standard), USB / MODBUS / RS485 / SNMP / AS400 card (optional)
Reliable design, made with strong glass fiber base (FR4) double side PCB, well designed ventilation and conformal coating

Technical Specifications

Model	Warrior 10K	Warrior 10KL	Warrior 15K	Warrior 15KL	Warrior 20K	Warrior 20KL
Accept Deeply Customized Products
Capacity	10KVA/10KW		15KVA/15KW		20KVA/20KW

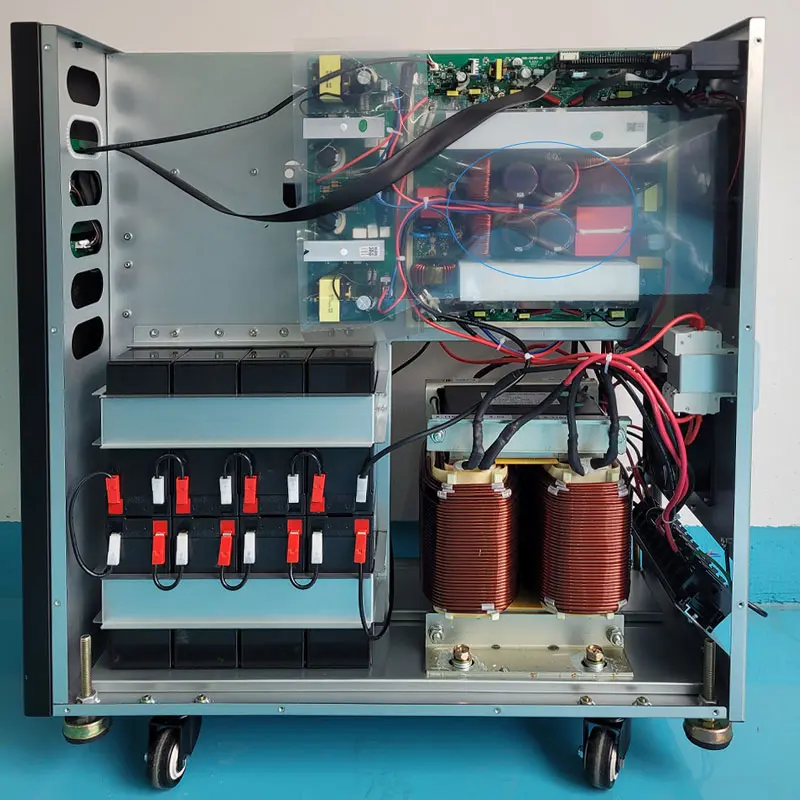

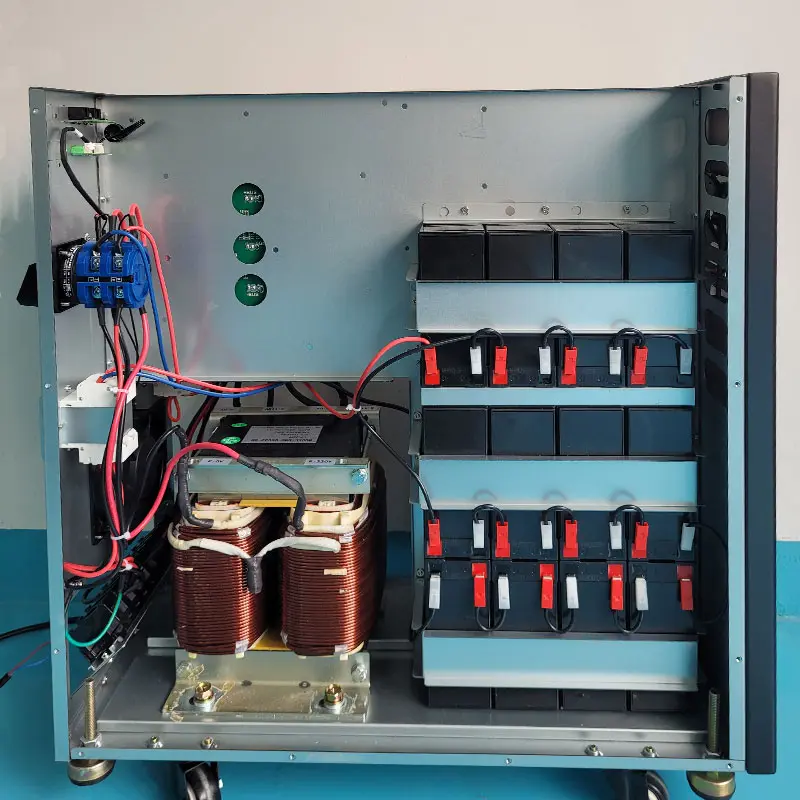

Topology	Double conversion online UPS with two phase galvanic isolation output transformer
AC INPUT
Wiring	Biphase 3 wires (L1+L2+PE)-220V or 1phase 3 wires ( L+N+PE) -220V or 3phase 5 wires (L1, L2, L3, N+PE)-380V
Rated Voltage	208/220/230/240VAC
Voltage Range	110~285VAC ± 5VAC
Input Power Factor	>0.99
BATTERY & CHARGER
Rated Battery Voltage	192VDC Internal	192VDC/240VDC External	192VDC Internal	192VDC/240VDC External	192VDC Internal	192VDC/240VDC External
Charging Current	Standard: 10K (2A/4A), 15K~20K (4A) \| Long backup model: 4A/8A (optional)
AC OUTPUT
Output Voltage	High voltage 208/220/230/240VAC ; Low voltage 110/120VAC
Waveform	Pure sine wave
Output Power Factor	1.0
Transfer Time	Line mode - Battery mode : 0ms
PHYSICAL
Dimension (WxDxH mm)	296x700x720	299x698x700	400x860x844	296x700x720	400x860x844	296x700x720

• Product specifications are subject to change without prior notice
• Ambient temperature > 30°C, output power factor is 0.9
• Model with "L" means long backup time model, without "L" means standard model

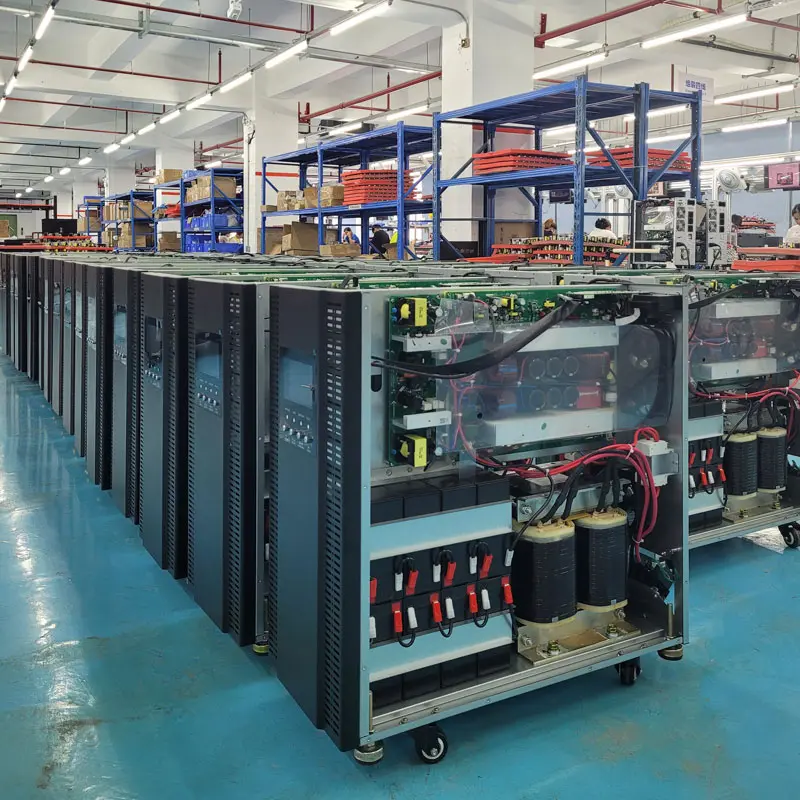

Production & Shipment

Product Packaging

Frequently Asked Questions

What are the payment terms for orders?

30% TT before producing, and the balance before shipping (applicable for orders over USD 10,000).

What is the warranty period and spare parts policy?

We provide a 1-year warranty. Additionally, 1% spare parts are shipped together with the goods for maintenance.

Do you guarantee safe and secure delivery of products?

Yes, we always use high-quality export packaging. For container orders, goods are excellently protected. We also recommend pallet supporting standard quantities to ensure safety during transit.

What quality control standards do you follow?

Our facility occupies 13,500 square meters and operates under the ISO9001 quality control system. All products comply with international standards such as CE and IEC certification.

What kind of technical expertise do you offer?

With over 20 years of ODM/OEM experience, we support hybrid hardware and software adaptations. We co-create to improve your competitive advantage in your local market.

How is product quality monitored during production?

Our factory utilizes advanced intelligent equipment such as AOI, ICT, FCT, ATE, and ROHS testers. These automatic production lines guarantee that products are controlled and monitored properly.
