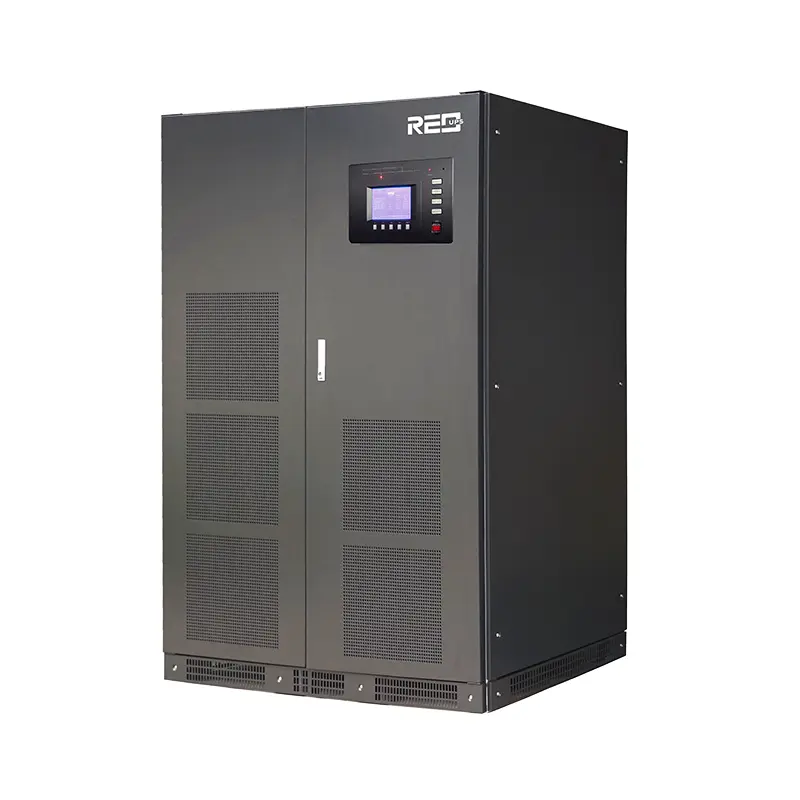

ODM Medical Equipment Low Frequency online UPS 160~600KVA Supplier, Suppliers

Model: GM33 series 160~600KVA, transformer based

GM33 series is a high end technology 3 Phase Input/ Output transformer based UPS system. It adapts the innovative designing concept of integration. It also has significantly improved the efficiency and reliability. Product Performance Index has reached international level. With Multiple Digital Control Modules, such as DSP, MCU, and CPLD, can be non-prioritized paralleled up to 8 units to lower operating costs without compromising reliability, performance, and availability.

Send Inquiry

Product Description

Key Features

✔Online double-conversion UPS

✔Advanced rectifier and IGBT technology

✔Full DSP control guarantees high reliability

✔Overall efficiency up to 90%

✔ECO mode efficiency up to 98%

✔Flexible battery configuration

✔Intelligent fault diagnosis system

✔Wide input voltage range and frequency range

✔Flexible single or dual utility power input

✔100% 3 phase unbalanced allowed

✔Front maintenance design

✔Parallel up to 8 units

✔Generator compatible

✔Built-in output isolated transformer

Technical Specification

Model	GF3310	GF3315	GF3320	GF3330	GF3340	GF3360	GF3380	GF33100	GF33120
Capacity	10KVA/9KW	15KVA/13.5KW	20KVA/18KW	30KVA/27KW	40KVA/36KW	60KVA/54KW	80KVA/72KW	100KVA/90KW	120KVA/108KW
HOST MACHINE
Overall Efficiency	90%
Noise (2 meters)	< 50-60dB
Working Temp.	-10 to 40℃
Protection Level	IP20
INPUT
Input Voltage	380Vac+N+W (3 phase + PE)
Voltage Range	285-475Vac
Input Current	23A	31A	39A	54A	70A	100A	125A	160A	192A
OUTPUT
Output PF	0.9
Waveform	Pure Sine Wave
Crest Ratio	3:1
PHYSICAL
Dimension (mm)	475 x 700 x 990			550 x 800 x 1200		605 x 800 x 1350		800 x 850 x 1900
Net Weight (Kg)	210	223	230	280	330	450	550	630	750

Production Showcase

Product Packaging

Frequently Asked Questions

1. What kinds of payment methods do you accept?

Usually 30% deposit in advance, 70% balance before shipment. For other payment methods, please consult our sales team.

2. What’s your price and MOQ?

Our comprehensive cost-performance ratio is among the best in the UPS power industry. The MOQ is flexible to meet different project needs.

3. What is the input voltage range for your UPS systems?

Our UPS systems support two types of input voltage range: 55~145V for 120V models and 90~300V for 220V models.

4. Can the UPS be used with a generator?

Yes, our UPS systems are fully compatible with most generators. It is recommended to check the generator's output stability for optimal performance.

5. What is the typical battery life of your UPS units?

Typical battery life ranges from 3 to 5 years, depending on the frequency of use and environmental conditions such as temperature.

6. How long does the UPS provide backup power?

Backup time varies by model and load. Standard units with internal batteries provide several minutes, while units configured with external batteries can support several hours.
