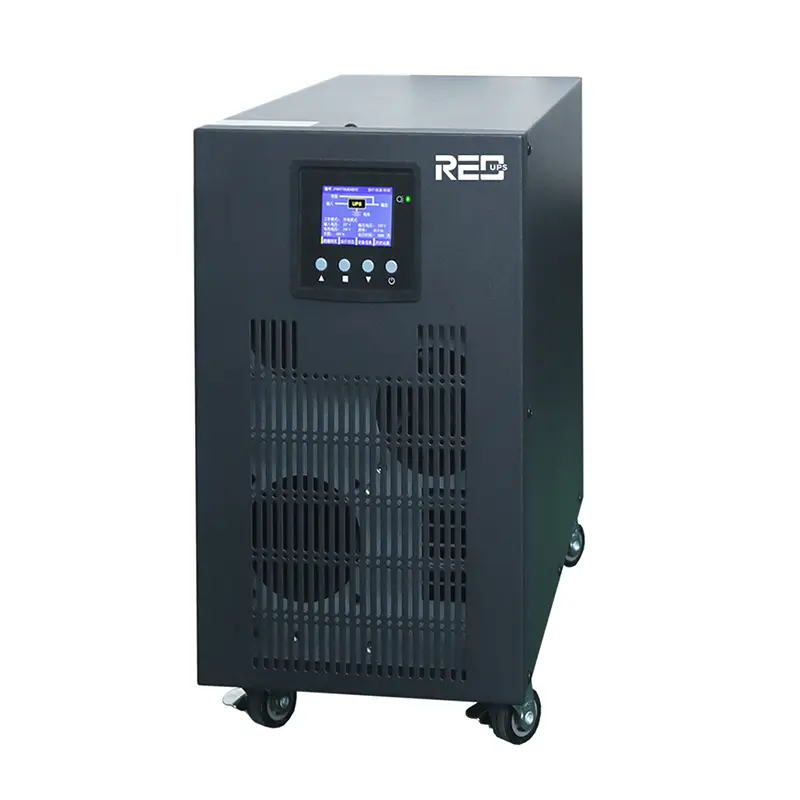

OEM Healthcare Single Phase Low Frequency Online UPS 1-15KVA Suppliers, Factory

Model: GD11 series 1~15KVA (1-1Phase, transformer based)

GD11 Series is a full-digitized with European MCU controlled 3phase in and 1phase out online UPS. It provides reliable, stable, and constant AC power for computer equipment, telecommunication devices, precision equipment instrument, and network termination equipment (NTE). UPS systems protects all these devices from losing data or information due to power outage, interruption or disruption to truly and comprehensively solve power issues, such as power outage, power surge, voltage sags, temporary over-voltage, temporary under voltage, frequency offset, power disturbances, switching transients, and harmonic wave distortion

Send Inquiry

Product Description

⚡ Key Features

✔ Online double-conversion with full DSP control

✔ MCU control provides higher system reliability

✔ Advanced SCR Rectifier and IGBT Inverter Technology

✔ Online 1/1 phase double conversion structure

✔ Adapt with output isolated transformer technology

✔ Non-Master slave digital parallel redundancy feature

✔ Advanced battery management system

✔ High overload ability and Battery Self-testing on LCD

✔ Front to rear ventilation design for reliability

📊 Technical Specifications

Model	GD11 1K/1KL	GD11 2K/2KL	GD11 3K/3KL	GD11 6K/6KL	GD11 8K/8KL
Capacity	1KVA/0.8KW	2KVA/1.6KW	3KVA/2.4KW	6KVA/4.8KW	8KVA/6.4KW
HOST MACHINE
Transformer	Output Isolation Transformer
Overall Efficiency	>85%
Working Temp	-10 to 40℃
Display	LCD Display: Multi-Language, Input/Output Status, ECO Mode, Inverter Temp, History Logs, Battery Test. LED UPS Status Indicators.
INPUT / OUTPUT
Input Voltage	200/220/230/240Vac Single Phase (160-280Vac Range)
Output PF	0.8
Output Waveform	Pure Sine Wave
Overload Capability	> 125%: 10 Min; > 150%: 1 Min
BATTERY & PHYSICAL
DC Voltage	72VDC	72VDC	96VDC	96VDC/192VDC	192VDC
Std. Net Weight (Kg)	37.5	38.5	49	84	None
