ODM Banking System Low Frequency Online UPS 6~30KVA Manufacturer, Manufacturers

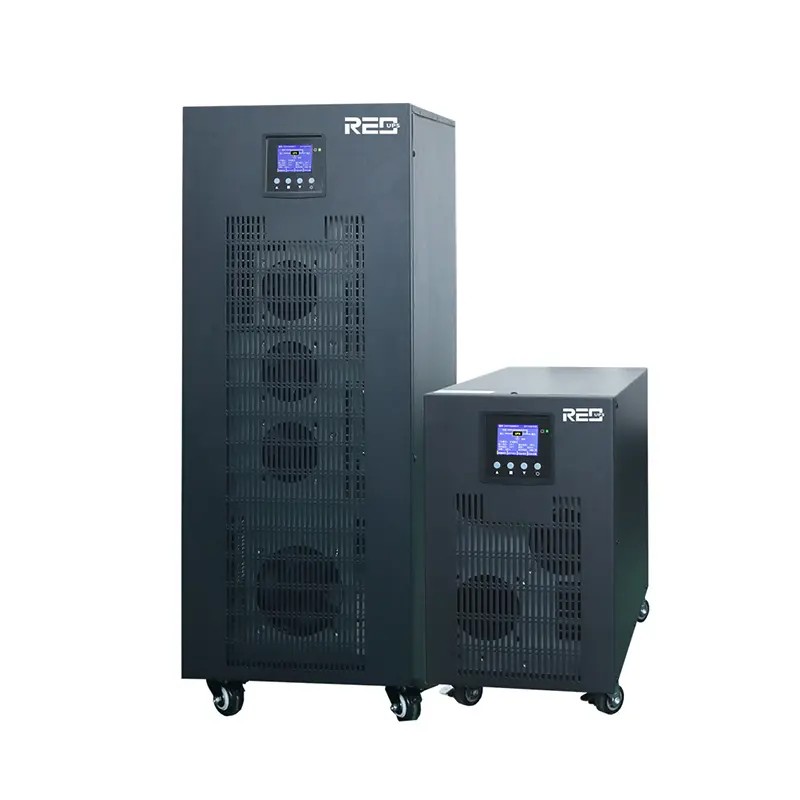

Model: GD31 series 6~30KVA (3-1Phase, Transformer based)

GD31 Series is a full-digitized with European MCU controlled 3phase in and 1phase out online UPS. It provides reliable, stable, and constant AC power for computer equipment, telecommunication devices, precision equipment instrument, and network termination equipment (NTE). UPS systems protects all these devices from losing data or information due to power outage, interruption or disruption to truly and comprehensively solve power issues, such as power outage, power surge, voltage sags, temporary over-voltage, temporary under voltage, frequency offset, power disturbances, switching transients, and harmonic wave distortion

Send Inquiry

Product Description

⚡ Key Features

✓ Online double-conversion with full DSP control

✓ MCU control provides higher system reliability

✓ Advanced SCR Rectifier and IGBT Inverter Technology

✓ Online 3/1phase double conversion structure

✓ Adapt with output isolated transformer technology

✓ Non-Master slave digital parallel redundancy feature

✓ Advanced battery management system

✓ High overload ability

✓ Battery Self-testing can be done on the LCD directly

✓ Front to rear ventilation design to reduce defective rate

📋 Technical Specifications

Model	GD3106	GD3110	GD3115	GD3120	GD3130
Capacity	6KVA/4.8KW	10KVA/8KW	15KVA/12KW	20KVA/16KW	30KVA/24KW
HOST MACHINE
Transformer	Output Isolation Transformer
Overall Efficiency	>85%
Noise (In 2 meters)	<50dB
Working Temperature	-10 to 40℃
Display	LCD Display: Multi-Language, Input/Output Status, ECO Mode, Inverter Temp, History Logs, Battery Test. LED Indicators: UPS Status.
INPUT & OUTPUT
Input Voltage	380/400/415Vac Three Phase (286-475VAC Range)
Output Voltage	200/220/230/240VAC Pure Sine Wave
Output PF	0.8
Overload Capability	> 125%: 10 Min; > 150%: 1 Min
DC Voltage	384VDC Standard (10/15KVA can be customized to 192VDC)
PHYSICAL
Dimension WxDxH (mm)	220 x 610 x 715		310 x 670 x 820
Net Weight (Kg)	67	74	99	117	125

📸 Production Showcase

📦 Professional Packaging

Frequently Asked Questions

What kinds of payment methods do you accept?

Usually 30% deposit in advance, 70% balance before shipment. For other payment methods, please consult with our sales team.

What’s your price and MOQ?

Our comprehensive cost-performance ratio is among the best in the UPS power industry. Our MOQ is flexible to meet different project requirements.

What is the input voltage range for your UPS systems?

Our UPS systems support a wide input voltage range: 55~145V for 120V models and 90~300V for 220V models.

Can the UPS be used with a generator?

Yes, our UPS systems are compatible with most generators. It is recommended to verify the generator's output stability for optimal performance.

What is the typical battery life of your UPS units?

The battery life typically ranges from 3 to 5 years, depending on the frequency of usage and environmental conditions like temperature.

How long does the UPS provide backup power?

Backup time varies by model and load. Standard units with internal batteries provide several minutes for safe shutdown, while long-backup models with external batteries can support several hours.
